Rebuilding My RD350 page 1
|
![](1photordnet_sm.JPG) |
I usually get elbow deep in grease and dust and put my camera away. I raced this bike in WERA in 1981 and 1982. |
Here I am in a grainy old picture in turn 3 at Blackhawk Farms. |
![](1rd350blackhawkcontrast_sm.JPG) |
![](2rdleft10611_sm.JPG) |

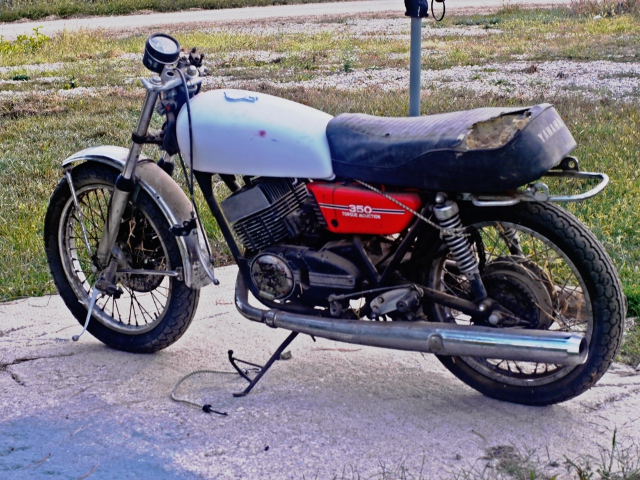

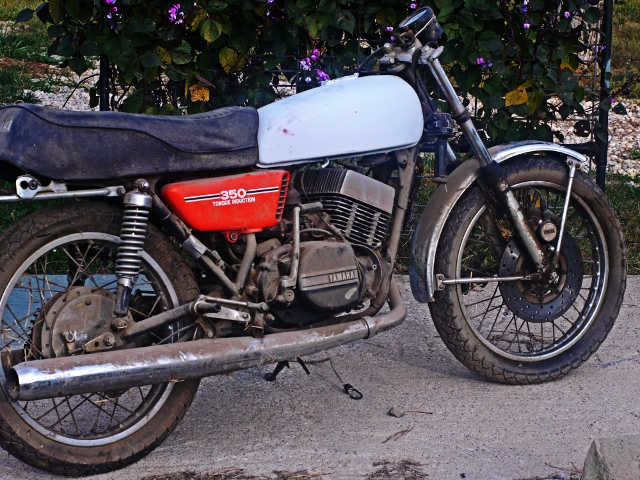

Two years ago I took the tank off, pounded out the dents. Filled in the imperfections with epoxy resin and flox. I cleaned and sealed the inside of the tank. Here it is outside of my shop. I started by hosing off the thickest of the grime. Raccoons had chewed up the seat. |
|
![](3rdright10611_sm.JPG) |
![](4rddisk10611_sm.JPG) |

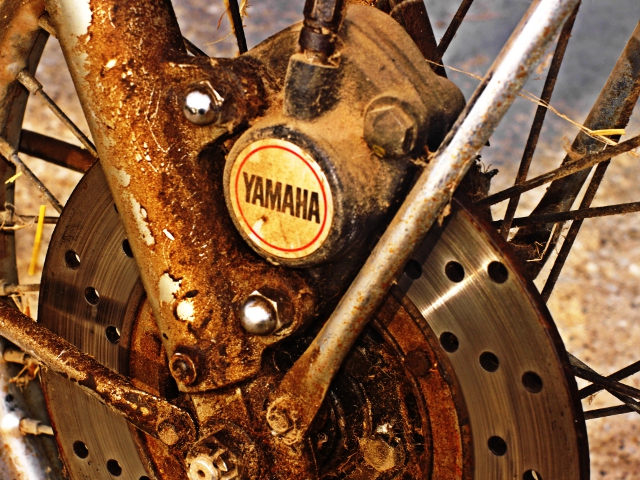

Forks leaking? |

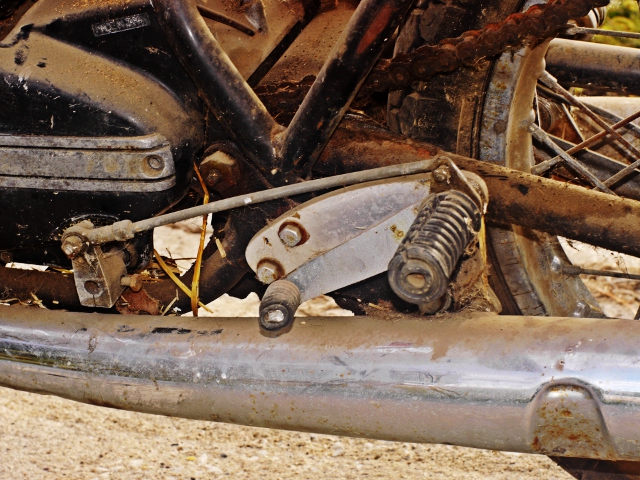

My rearsets still intact. |
![](4rdltfoot10611_sm.JPG) |
![](5rdengineoutnet_sm.jpg) |

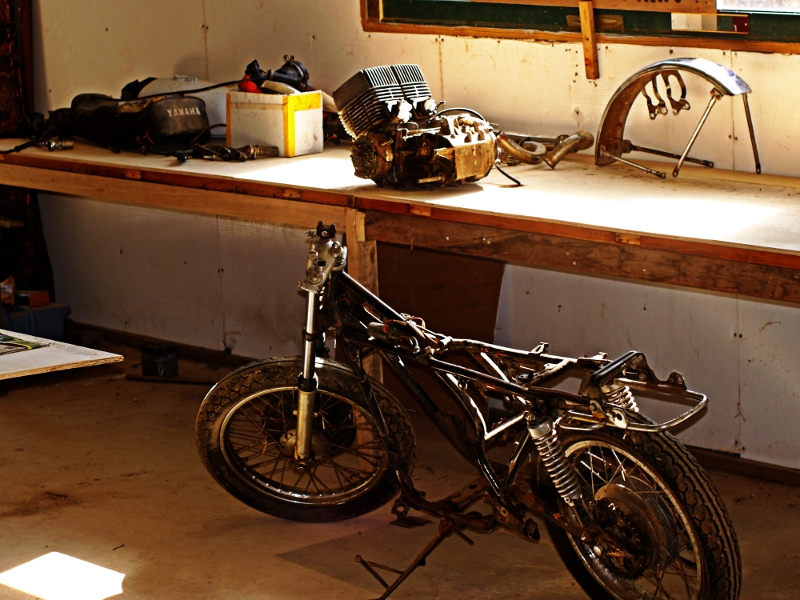

Most of the bigger parts are on the workbench. |

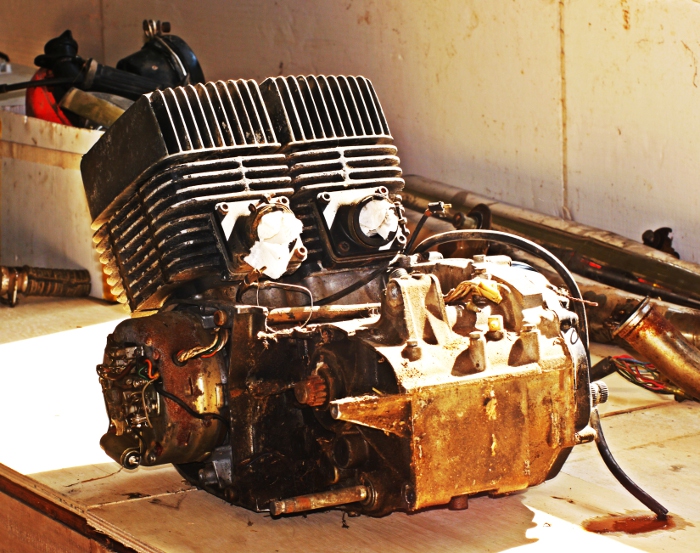

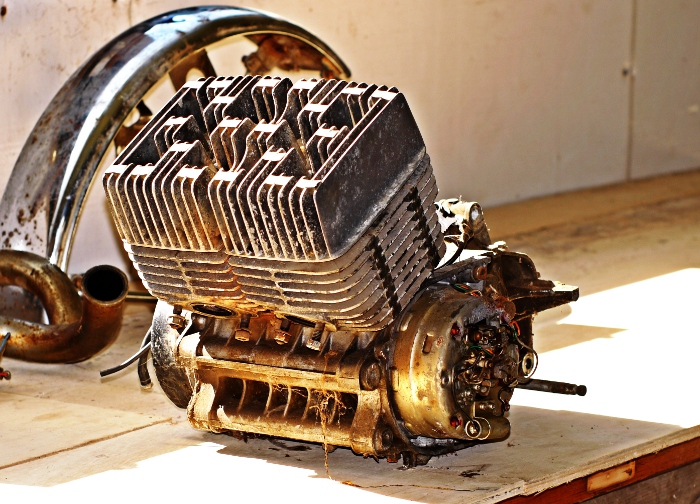

Still a ton of dirt. The engine was locked up. |
![](6dirtyengineonbenchnet_sm.jpg) |
![](7enginedirty2net_sm.jpg) |
|

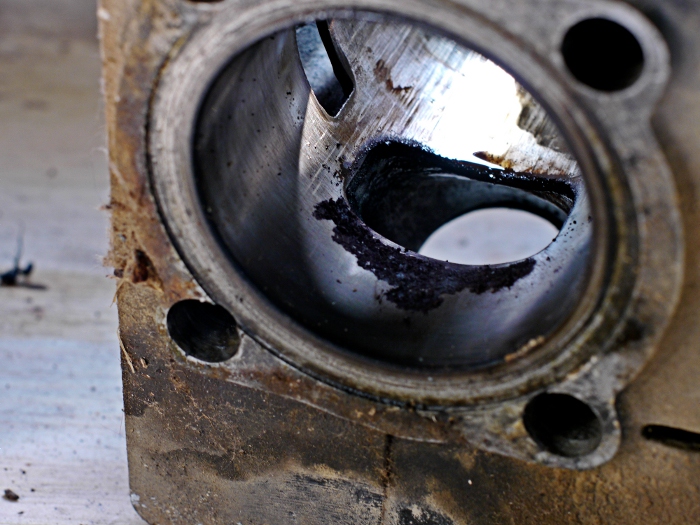

Pulled the jugs and found the left cylinder was corroded. The engine had been parked wth the left piston down exposing the cylinder and crank to the air. |
![](8leftcylindernet_sm.jpg) |
![](9clutchfingersnet_sm.jpg) |

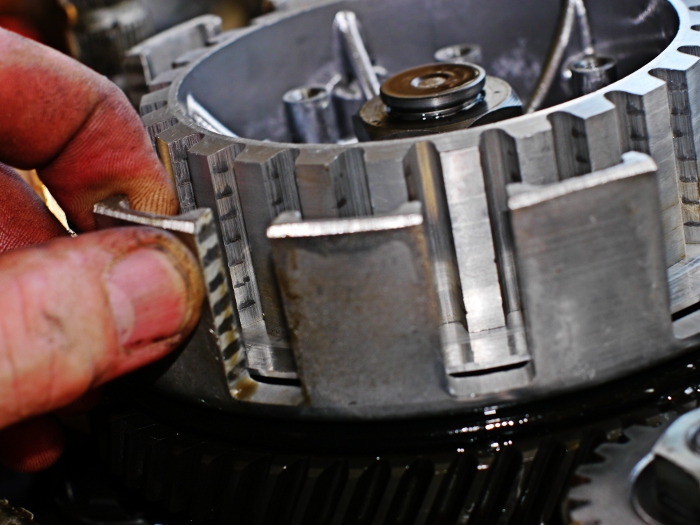

Not much wear on the clutch basket. I did most all of my shifting without the clutch. |

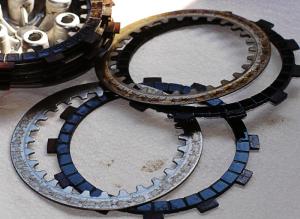

The clutch plates show almost no wear. Probably going to replace the fiber plates. |
![](9clutchplatesnet_sm.jpg) |
![](brokencasenet_sm.jpg) |

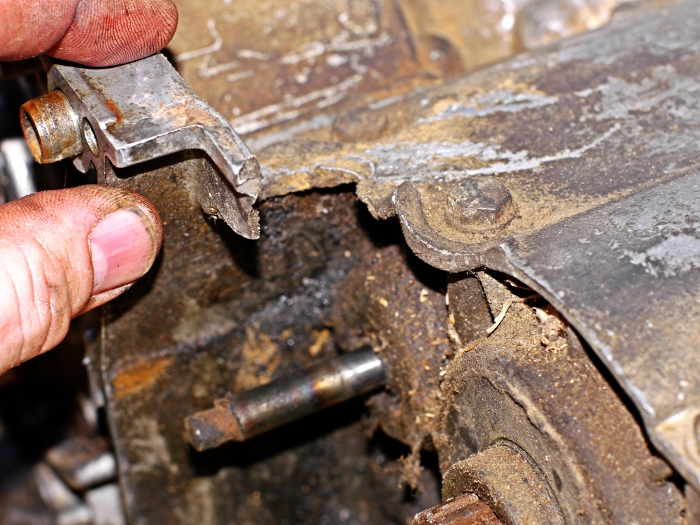

I forgot that the chain broke and took out a chunk of the top case. I had the clutch cable safety wired into remaining spot. |

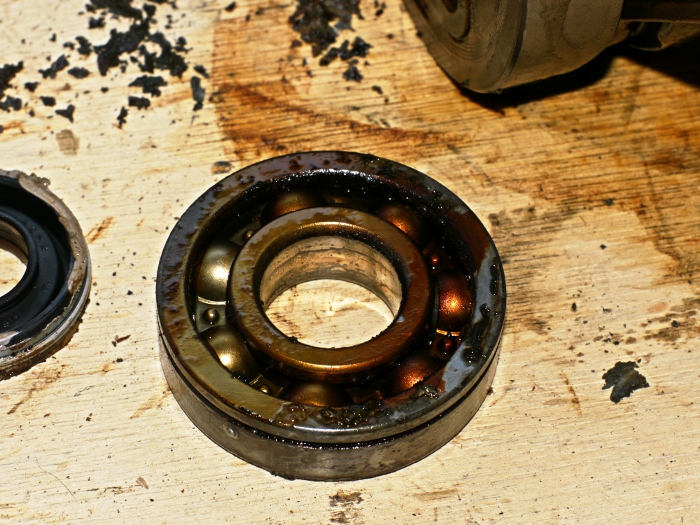

The crank didn't turn over even with the clutch out and the pistons out. The bearings were rather glued togeather. |
![](leftmainbearingnet_sm.jpg) |
![](transmissionnet_sm.jpg) |

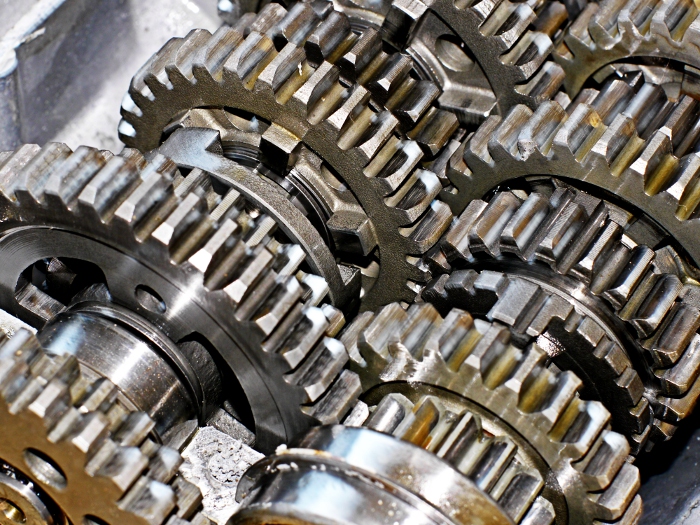

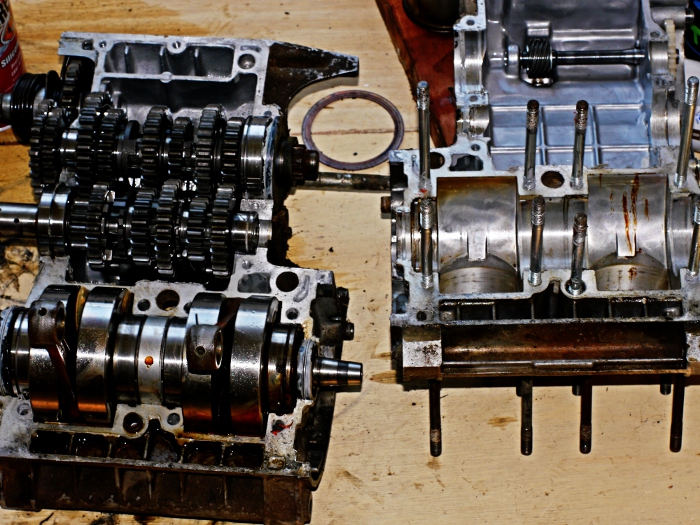

The transmission shows almost no wear. No pits on the teeth. No rounding of the dogs. The shifter fingers are straight and have no bends or bluing. |
Yep I know it is in rather sad condition. But I have owned the machine since 1975 and have some history on it. Probably won't look stock when I am finished. |
![](transmissiontopnet_sm.jpg) |
